Racking is an essential component of warehouses. When it comes to a racking installation in Singapore, businesses should begin with proper planning of the warehouse space, inventory loads, rack configuration and material-handling requirements. Installation is not simply the physical assembly of a racking system; it involves ensuring that the selected system fits the facility and can support its intended storage operation.
Before installation starts, businesses should understand what will be stored, how inventory will be accessed and how the proposed racking arrangement interacts with the warehouse layout. Floor conditions, building constraints, aisle requirements and load specifications can all affect the final configuration.
A properly planned installation also creates a clearer basis for subsequent rack inspections, maintenance and changes to the storage system.
This comprehensive guide focuses specifically on the installation stage of warehouse racking, covering pre-installation planning, site assessment, layout, load requirements, rack assembly, safety considerations and post-installation checks.
Plan the Racking Installation Before Assembly Begins
Racking installation planning establishes how the storage system will fit into the warehouse and operate after completion. The installation process should therefore begin before rack components arrive on site.
The first step is to define the storage requirement. Businesses should identify inventory dimensions, weights, pallet types and expected quantities.
The proposed racking system should then be matched to these requirements.
Installation planning should also consider:
- Warehouse dimensions and available height;
- Material-handling equipment;
- Aisle and access requirements;
- Receiving and dispatch activities;
- Fixed building features; and
- Future storage requirements were reasonably foreseeable.
Resolving these factors before assembly can reduce the need for changes after the racks have already been positioned.

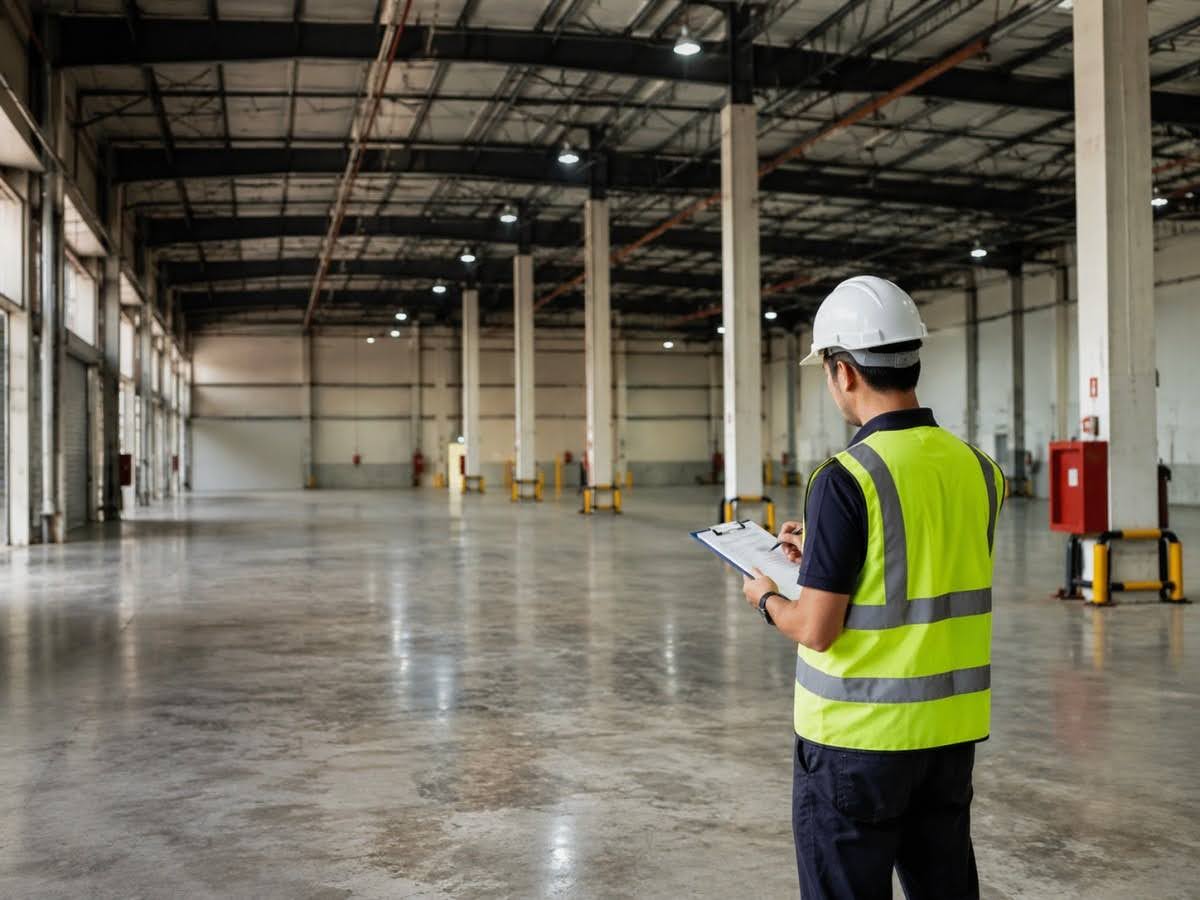

Conduct a Site Assessment
A site assessment examines the physical conditions that may influence rack placement and installation. It provides the information needed to determine whether the proposed configuration is practical within the warehouse.
Measurements should confirm usable floor area and vertical clearance.
The assessment should also identify structural columns, walls, entrances, loading areas and other fixed features that may restrict rack positions.
Building services can also influence the available storage envelope. Depending on the facility, these may include lighting, ventilation, electrical installations and fire protection systems.
The objective is to establish the actual usable installation area rather than designing around warehouse dimensions alone.

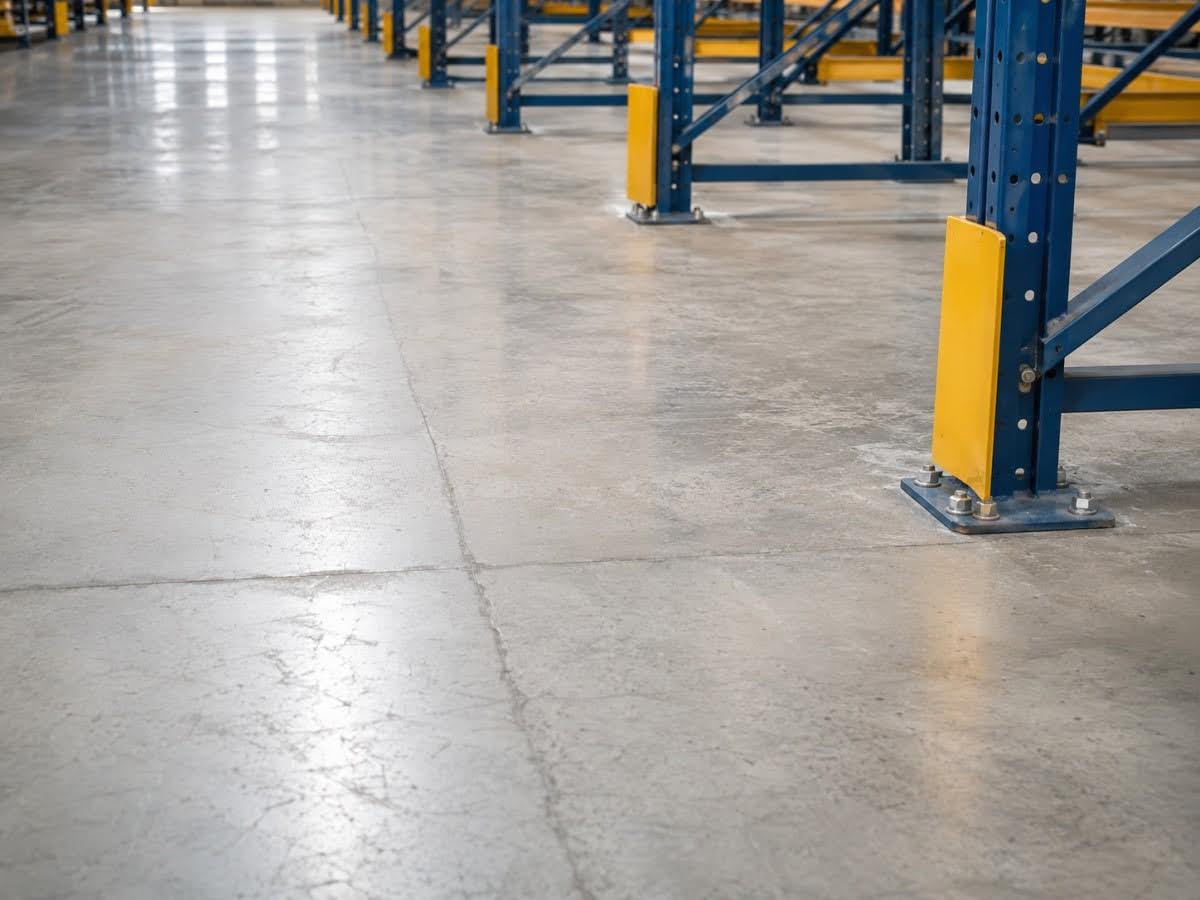

Check the Warehouse Floor Conditions
Floor conditions matter because a racking system transfers its loads through the uprights and baseplates to the supporting floor. The installation area should therefore be suitable for the intended rack configuration.
The surface should be assessed for significant unevenness, deterioration or other conditions that could affect installation.
Floor level can also influence rack alignment.
Racking should not simply be assembled over unsuitable surfaces without considering how the condition may affect the finished structure.
Where anchoring is required, the installation method should also be appropriate for the floor and rack system.
The specific requirements depend on the racking design, intended loads and site conditions.
Finalise the Warehouse Layout
The warehouse layout determines where racks, aisles and operational areas will be positioned. It should support both storage capacity and the movement required for everyday operations.
Rack rows should not be considered independently from receiving, picking, staging and dispatch activities.
A warehouse may technically accommodate additional racks but become less efficient if the resulting configuration restricts inventory movement.
The final layout should consider the relationship between:
| Layout Element | Installation Consideration |
|---|---|
| Rack rows | Storage capacity and access |
| Aisles | Handling equipment and movement |
| Loading areas | Inbound and outbound workflow |
| Building columns | Rack positioning and clearances |
| Operational zones | Picking, staging and replenishment |
| Vertical space | Rack height and equipment reach |
The installation plan should therefore reflect how the warehouse will operate after the racks are assembled.
Match Racking Selection to the Stored Inventory
The selected racking system should correspond with the type of inventory it will support. Different storage requirements may require different rack configurations.
Heavy palletised goods generally require a system designed for pallet storage, while manually handled cartons may be more appropriately stored on shelving.
Long materials can require specialised systems such as cantilever racking.
A warehouse may therefore use several rack types within one facility.
The installation should preserve the intended role of each system rather than treating every storage area as interchangeable.
Selecting the rack before defining the inventory can create problems if the final load, dimensions or handling method differs from what the system was intended to accommodate.
Establish Load Requirements Before Installation
Load requirements should be established before the racking system is assembled and put into service. This includes understanding the expected weight placed on individual storage levels and the overall system.
The maximum expected inventory load is more useful than the average load because racks need to accommodate the intended operating conditions.
For pallet racking, businesses should understand pallet weight, pallet dimensions and the number of pallet positions planned for each level.
For shelving systems, the expected load per shelf should be considered.
The rack configuration and load requirements are related. Changing beam positions, shelf levels or other structural arrangements may affect how the system performs.
Installation should therefore follow the approved or specified configuration.
Consider Pallet Dimensions and Load Characteristics
Pallet dimensions influence beam spacing, storage positions and handling clearances. They should be confirmed before pallet racking installation begins.
A warehouse using consistent pallet dimensions can usually plan storage positions more systematically.
Mixed pallet sizes may require additional assessment.
Load characteristics also matter. A stable, evenly distributed pallet behaves differently from an irregular or poorly secured load.
The rack should be configured around the actual pallets and goods expected in normal operation.
Businesses should avoid assuming that all palletised inventory creates identical storage requirements simply because it is handled by forklift.
Plan Aisles Around Material-Handling Equipment
Aisle requirements depend substantially on the material-handling equipment used in the warehouse. Forklifts need sufficient space to travel, turn and position loads at the rack.
The equipment should therefore be confirmed before the final rack rows are marked out.
Different forklift types can require different operating clearances.
Rack height should also correspond with the equipment's lifting capabilities.
Installing storage positions beyond practical equipment reach does not create useful warehouse capacity.
The relationship between racks and forklifts is especially important because changing equipment later may alter the space required for normal operation.
Mark Out Rack Positions Before Assembly
Rack positions should be established on the warehouse floor before the main assembly process begins. Marking out provides a physical reference for the installation layout.
This stage allows installers to verify rack rows, aisle positions and clearances against the planned arrangement.
It can also identify conflicts that may not have been obvious on drawings.
For example, a proposed rack line may interact unexpectedly with a building column, doorway or operational route.
Finding these issues before assembly is generally more practical than relocating completed rack sections.
The marked layout should correspond with the agreed warehouse plan before installation proceeds.

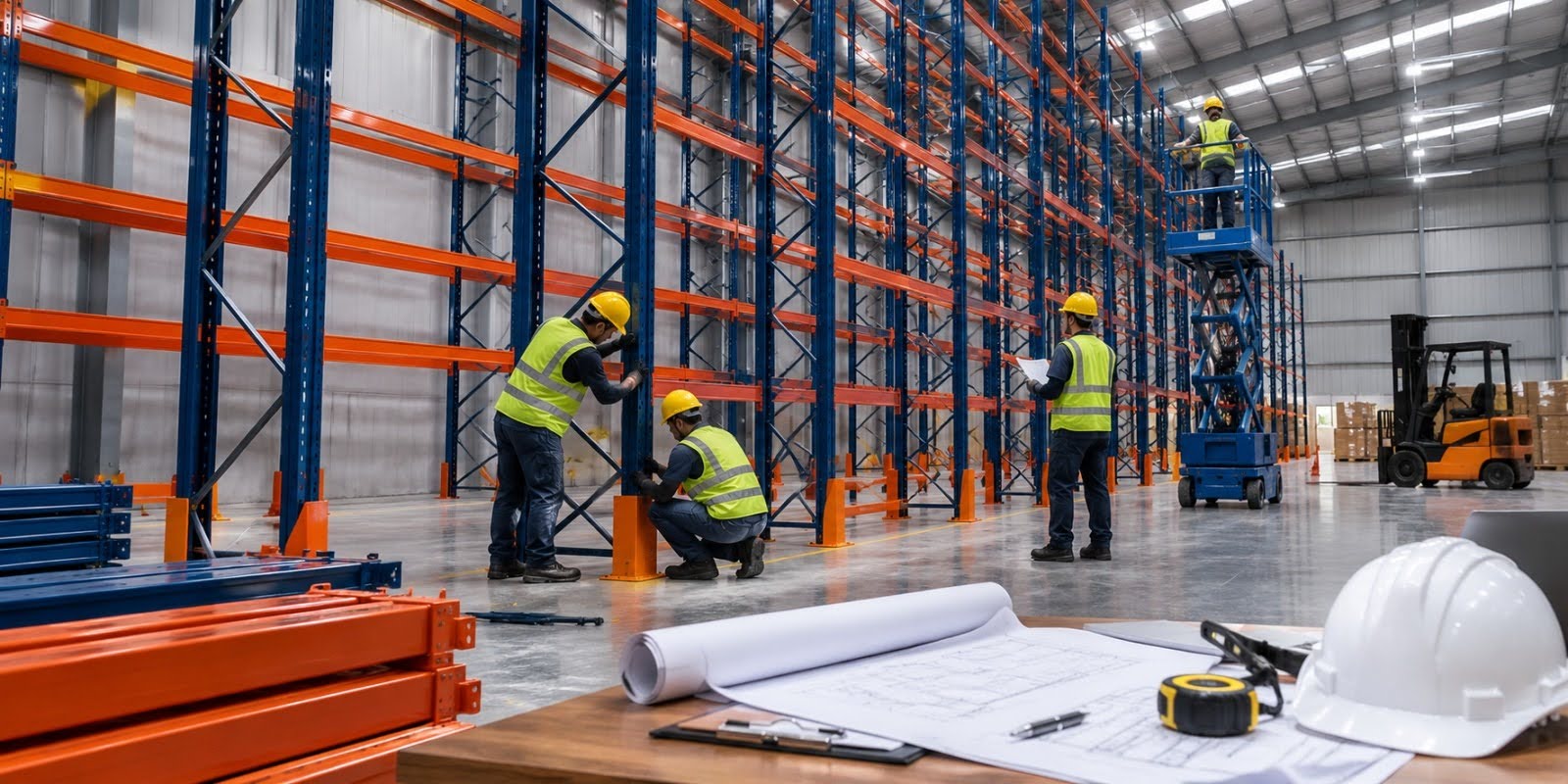

Assemble Racking According to the System Design
Rack assembly should follow the intended configuration and installation requirements of the specific system. Components should not be treated as universally interchangeable.
A typical pallet racking installation may involve upright frames, beams, bracing, baseplates and associated components.
Other systems can use different structural arrangements.
The correct components should be positioned and connected as intended.
Unapproved modifications can change the way loads are transferred through the system.
Cutting, drilling, welding or substituting structural components without appropriate assessment should therefore be avoided.
Installation accuracy matters because the completed rack needs to operate as a complete storage structure rather than as a collection of individual parts.
Check Rack Alignment During Installation
Rack alignment helps ensure that the completed system follows its intended geometry. Uprights and rack rows should be positioned appropriately as installation progresses.
Misalignment can affect the appearance of the installation, but the more important concern is whether the system remains within its installation requirements.
Checking progressively is more practical than waiting until every rack has been assembled.
Adjustments can then be made before additional bays or levels depend on the earlier sections.
Alignment should be considered together with floor conditions, anchoring and the overall rack configuration.
Anchoring and Structural Stability
Anchoring can form an important part of racking installation by connecting the rack structure to the supporting floor where required by the system design.
The appropriate fixing method depends on the rack, floor and installation requirements.
Anchors should be positioned and installed according to the applicable specification.
Anchoring should not be treated as a way to compensate for an incorrectly assembled or poorly positioned rack.
The complete system needs to be correctly configured, aligned and supported.
Structural stability also depends on components such as bracing and connections remaining properly installed.
Protect Racking From Operational Damage
Rack protection measures can be considered during installation where there is a foreseeable risk of impact from forklifts or other material-handling equipment.
Uprights positioned close to active traffic areas can be particularly exposed.
The appropriate protection depends on the warehouse layout and operating conditions.
Protection does not eliminate the need for careful equipment operation. It provides an additional measure in areas where impact risk has been identified.
Planning these measures during installation can be more effective than waiting until repeated rack damage occurs.
Carry Out Post-Installation Checks
Post-installation checks verify that the racking has been assembled according to the planned configuration before normal loading begins.
The completed installation should be reviewed systematically.
Checks may include:
- Layout Verification: Rack positions against the agreed layout;
- Structural Assembly: Upright and beam configuration;
- Fixings and Fittings: Connections and components;
- Floor Anchoring: Anchoring where required;
- System Alignment: Alignment and general condition; and
- Capacity Matching: Storage levels against intended load requirements.
Any issues identified should be addressed before the affected area is put into normal service.
The objective is to establish a clear starting condition for the racking system.
Establish Load Information Before Using the Racks
Warehouse users need clear information about the loads intended for the installed racking. Storage practices should remain consistent with the system's defined capacity and configuration.
This is particularly important when several rack types are present in the same facility.
Workers should not assume that every bay or shelf has the same capacity.
Changes to rack configuration should also be controlled.
Moving beams or altering shelf levels may appear to be a simple operational adjustment, but structural configurations should not be changed without considering the system requirements.
Clear load information helps connect the original installation design with everyday warehouse use.
Ongoing Maintenance Begins After Installation
Racking installation is the beginning of the system's operational life rather than the end of rack management. Once inventory movement begins, the structure can be exposed to impact, wear and changes in storage practices.
Businesses should establish a process for reporting visible damage or unusual conditions.
Components showing deformation, impact or other concerns should be assessed rather than ignored.
The warehouse should also avoid uncontrolled modifications.
Ongoing maintenance helps ensure that the racking continues to be used in a manner consistent with its intended configuration.
Installation and Rack Inspection Serve Different Purposes
Racking installation establishes the initial storage structure, while rack inspection evaluates its condition during subsequent use. Both activities are important, but they address different stages of the system's lifecycle.
Post-installation checks establish whether the system has been assembled correctly before use.
Later inspections look for changes such as damage, deformation, missing components or loading issues that may develop during warehouse operations.
This distinction is important for topical planning as well. Racking installation focuses on site preparation, assembly and commissioning, whereas rack inspection focuses on identifying and managing changes to an existing system.
Frequently Asked Questions (FAQs)
What should be checked before warehouse racking installation?
Businesses should confirm warehouse dimensions, floor conditions, inventory requirements, rack loads, pallet sizes, handling equipment and the proposed layout. Fixed building features and operational areas should also be identified before assembly begins.
Why is warehouse layout important before installing racks?
The layout determines how racks interact with aisles, forklifts, receiving, picking and dispatch areas. Poor positioning can create access or workflow problems even when the racking itself is suitable.
Does forklift type affect racking installation?
Yes. Forklift dimensions, turning requirements and lifting height can influence aisle widths, rack access and usable storage height.
Can rack levels be changed after installation?
Some racking systems allow configuration changes, but alterations should remain consistent with the system's design and load requirements. Structural components should not be repositioned arbitrarily.
What should be checked after racking installation?
Post-installation checks should review the rack configuration, alignment, components, connections, anchoring where applicable and consistency with the intended layout and load requirements.
Does warehouse racking require maintenance after installation?
Yes. Operational use can expose racks to impacts, component damage and changes in loading practices. Ongoing condition monitoring and appropriate maintenance should form part of warehouse rack management.
Creating a Reliable Foundation for Warehouse Storage
Successful warehouse racking installation depends on decisions made before and during assembly. Site conditions, inventory characteristics, warehouse layout, load requirements and handling equipment should all be considered before the storage system is put into use.
Correct assembly is equally important. Rack positions, structural components, connections, alignment and anchoring where required should correspond with the intended configuration.
For businesses planning projects around a racking installation in Singapore, the installation should be treated as part of the wider warehouse storage strategy. A rack that fits physically into the building is not necessarily the right installation unless it also supports inventory loads, access and everyday warehouse operations.
Plan Your Racking Installation Around Operational Requirements
Warehouse racking installation should be based on the facility, inventory, load requirements and handling methods that the system will support. Eastern Win Enterprises Pte Ltd. provides warehouse racking systems and installation solutions for commercial and industrial storage applications in Singapore.
